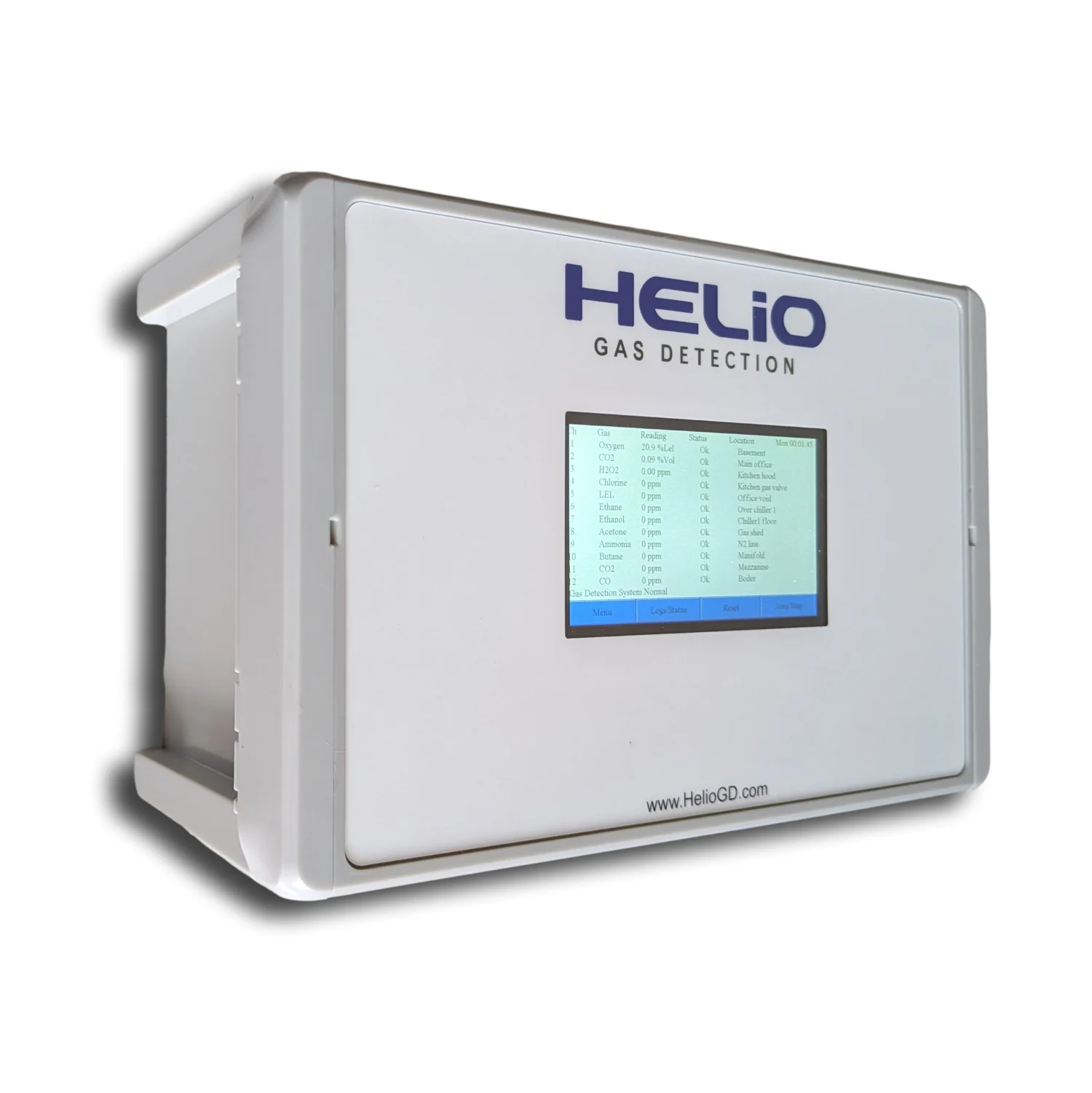

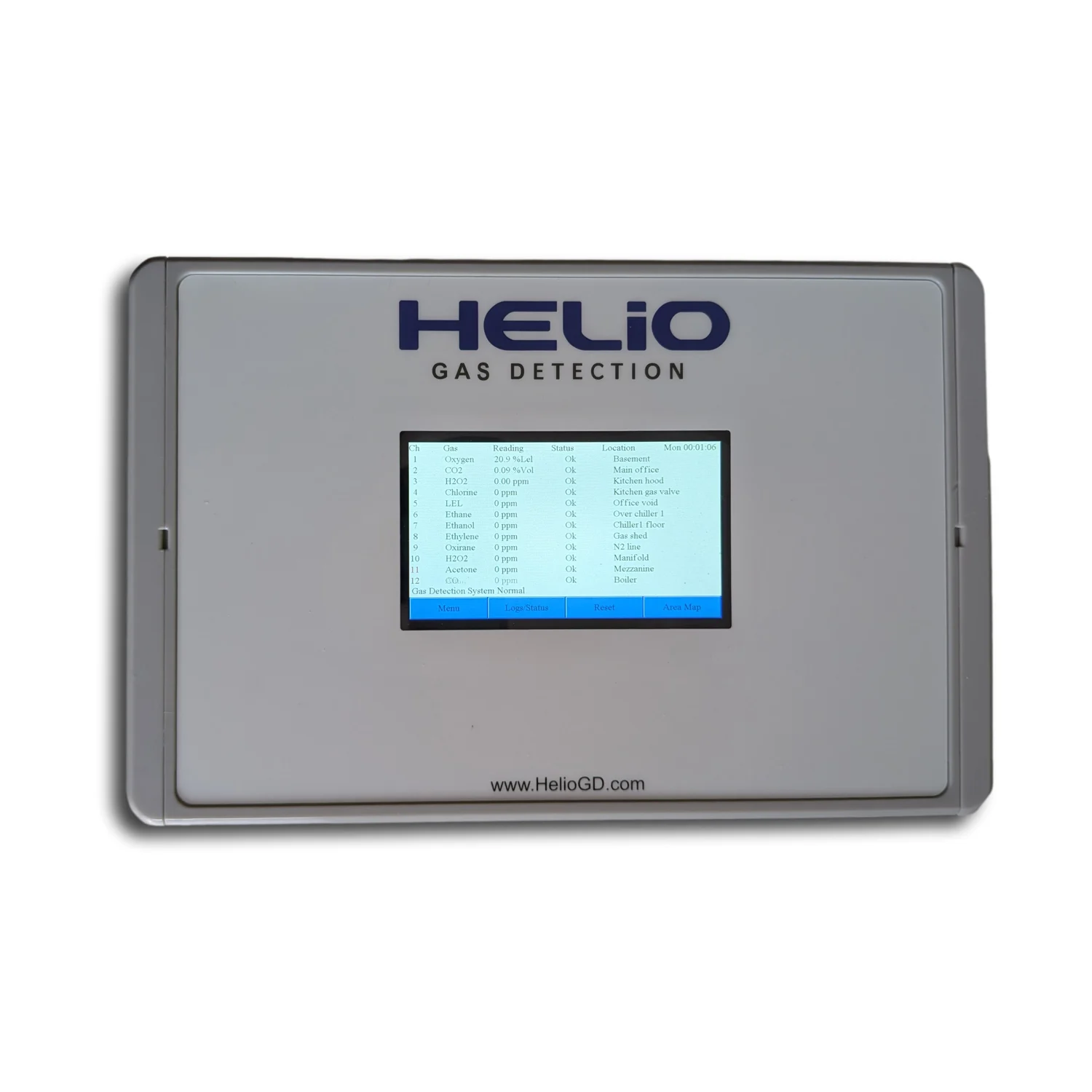

The MAP-300 incorporates a 4.3” capacitive touch vibrant display, internal relays, digital Inputs with assignable text, Modbus, milli-amp & RS485 detectors and is fully expandanble. Identify Alarm locations in an istant:

User text to describe each device location.

• Dedicated area map.

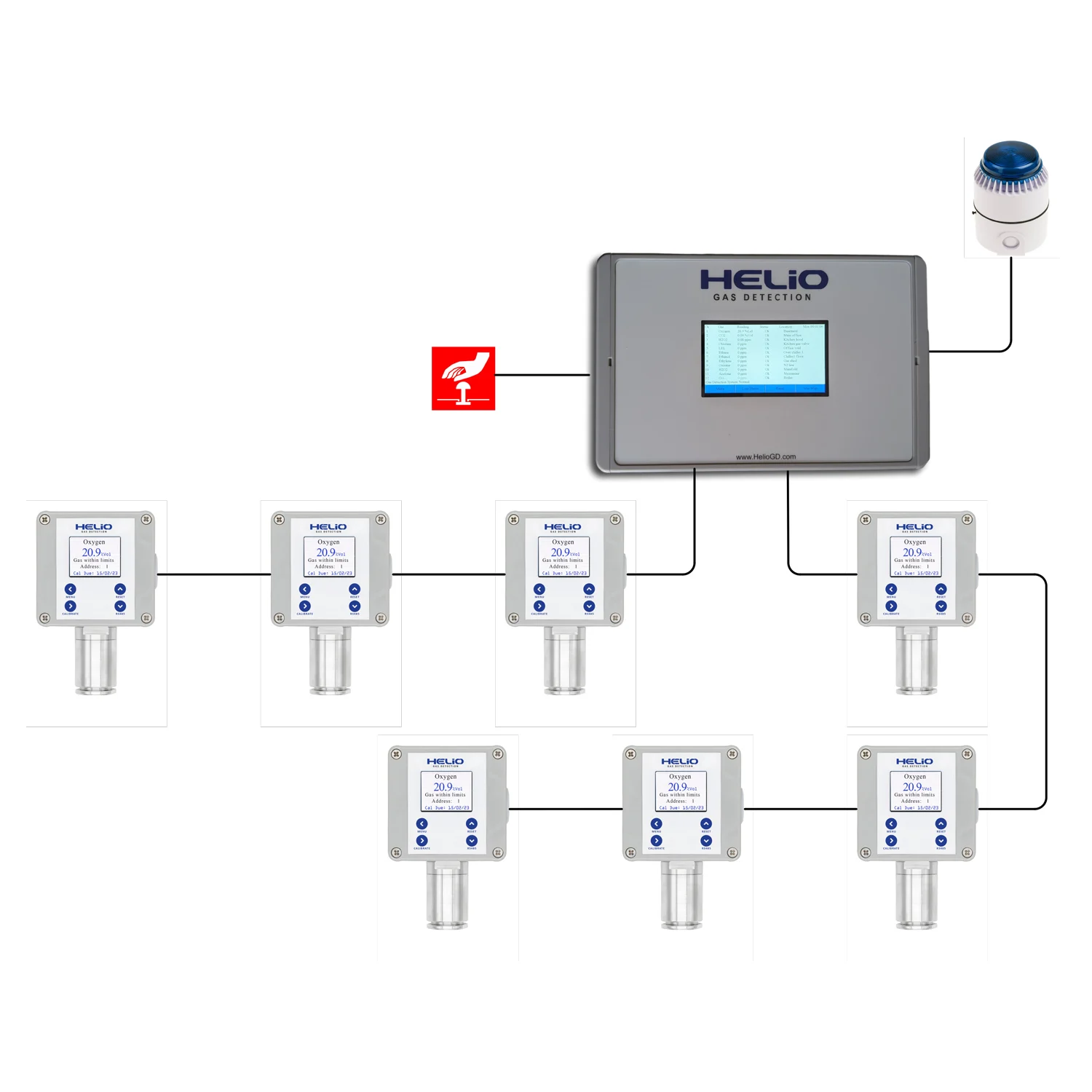

• Connect up to 500 Devices.
• Calibrate via control panel for mimimal intrusion.

System Features

• Remote calibration of detectors via control panel.
• Works with milli-amp and RS485 detectors or with a mA/Voltage output any device
• Visual indication of gas levels
• 4.3” full colour TFT display
• Network up to 500 gas sensors
• U-processor based functionality
• RS 485 Modbus RTU
• Dedicated Customer 24v Supply
• 8 x Volt free contacts expandable to 96
• Alarm levels freely programmable
• Internal fault monitoring
• Dedicated Gas Valve Relay.
